Multi-Channel Portable Potentiostats / Galvanostats

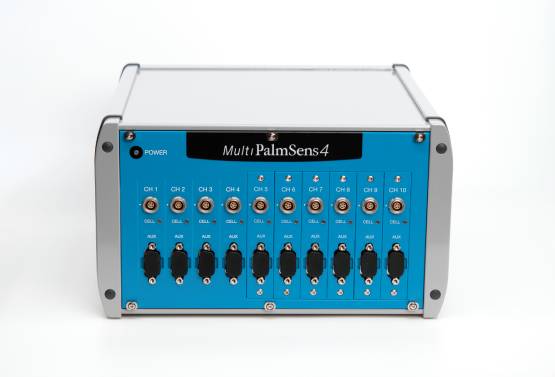

MultiPalmSens4

4 to 10 channel Potentiostat/Galvanostat/EIS Analyzer

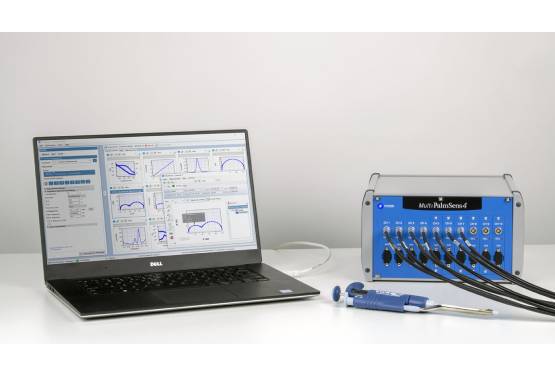

The MultiPalmSens4 is a flexible multi-channel potentiostat, galvanostat and impedance analyzer which you can fully tailor to your requirements and budget. The MultiTrace software allows for using each channel individually or simultaneously or running a sequence of automated tasks on each channel. Each channel provides an additional auxiliary port for controlling peripherals or monitoring temperature or other analog signals.

Configure your ideal multi-channel potentiostat

Each channel can be configured with:

±5 V or ±10 V maximum potential range
EIS/FRA with maximum frequency of 100 kHz or 1 MHz
Bipotentiostat module for second WE
iR-Compensation
Galvanic isolation

Technical Description

4 to 10 channels available in different configurations
FRA / EIS: 10 μHz to 1 MHz
9 current ranges: 100 pA to 10 mA
Voltage range: ±5 V or ±10 V

Techniques

Voltammetric techniques

Linear Sweep Voltammetry (LSV)
Cyclic Voltammetry (CV)
Fast Cyclic Voltammetry (FCV)
AC Voltammetry (ACV)

Pulsed techniques

Differential Pulse Voltammetry (DPV)
Square Wave Voltammetry (SWV)
Normal Pulse Voltammetry (NPV)

Amperometric techniques

Chronoamperometry (CA)
Zero Resistance Amperometry (ZRA)
Chronocoulometry (CC)
MultiStep Amperometry (MA)
Fast Amperometry (FAM)
Pulsed Amperometric Detection (PAD)
Multiple-Pulse Amperometric Detection (MPAD)

Galvanostatic techniques

Linear Sweep Potentiometry (LSP)
Chronopotentiometry (CP)
MultiStep Potentiometry (MP)
Open Circuit Potentiometry (OCP)
Stripping Chronopotentiometry (SCP or PSA)

Other

Mixed Mode (MM)

Potentiostatic/Galvanostatic Impedance spectroscopy (EIS/GEIS)

Potential scan or current scan
Fixed potential or fixed current
Time scan

TECHNICAL SPECIFICATIONS

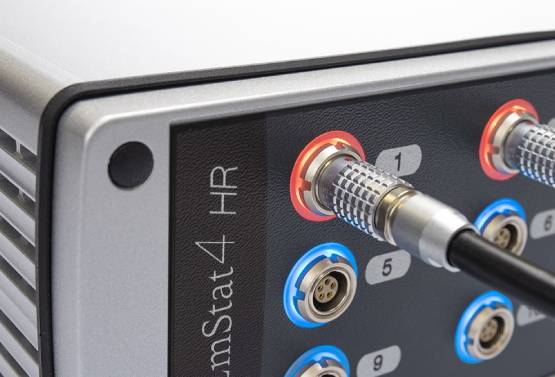

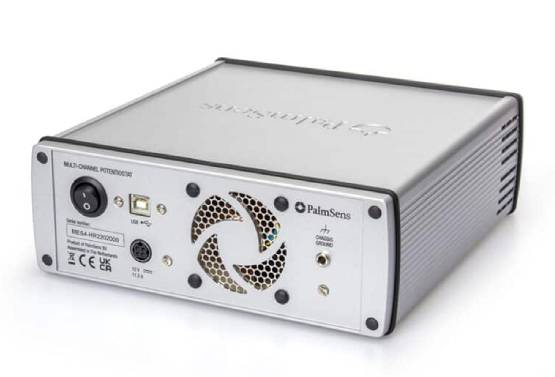

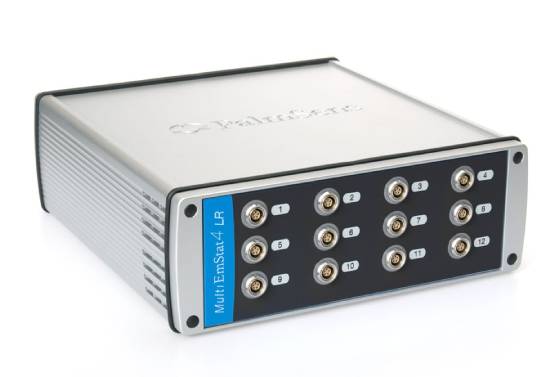

MultiEmStat4

4, 8 or 12 channel Potentiostat/Galvanostat/EIS Analyzer

The MultiEmStat4 is a compact Potentiostat, Galvanostat, and optional Frequency Response Analyser (FRA) for Electrochemical Impedance Spectroscopy (EIS) with 4, 8 or 12 channels. The MultiEmStat4 comes in two versions; the Low Range version is great for applications that require a low current range down to 1 nA, whereas the High Range version is very suitable for applications that need a maximum current of 200 mA. The MultiEmStat4 is controlled with MultiTrace for Windows, or you can write your own MethodSCRIPT and control it from any platform or operating system.
