Tensile - Compression - Bending

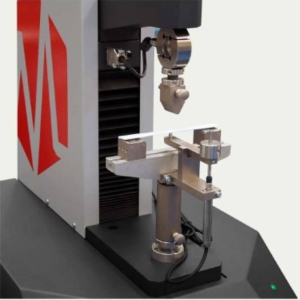

We consider that a material is subjected to tensile stress when two equal and opposite forces are applied along its axis, leading to an increase in length and a decrease in its initial cross-section. Similarly, a material is considered to be under compression when two equal and opposite forces are applied along its axis, resulting in a decrease in length and an expansion of its initial cross-section. A sample is considered to be bent when it is supported at one or more points, and external forces/loadings are applied perpendicular to its axis. As a result of bending, tensile, compressive, and shear stresses develop across the cross-section and along the length of the sample.

Our company is able to offer a range of high-quality tensile/compression/bending machines from Techlab-Metrotec, leading Spanish manufacturer that we represent in Greece.

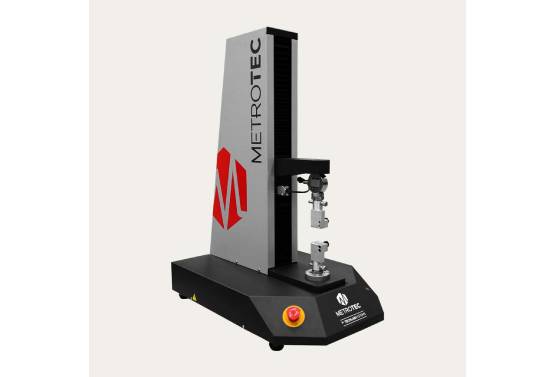

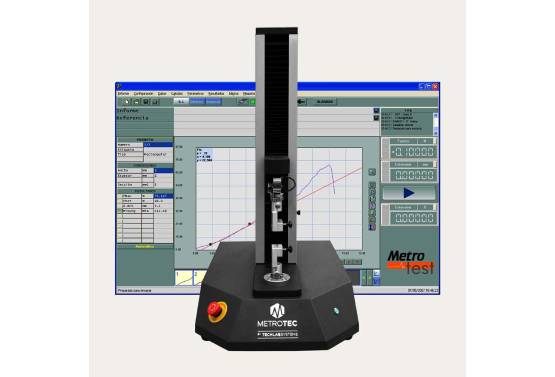

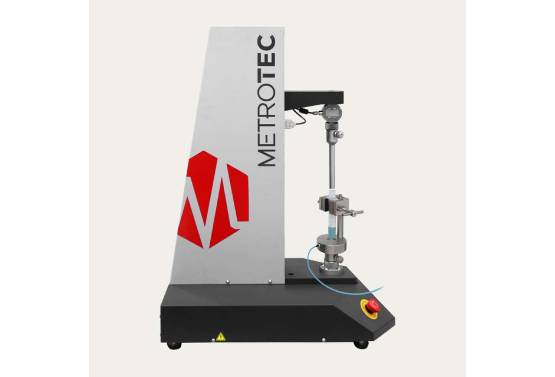

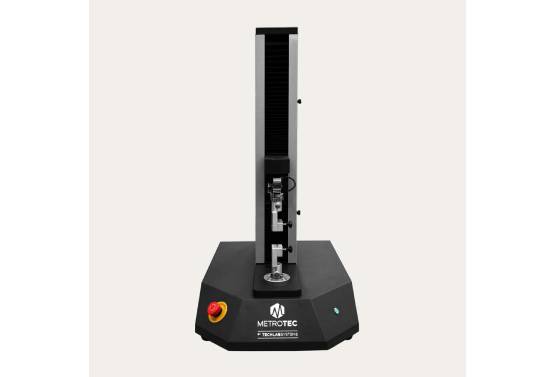

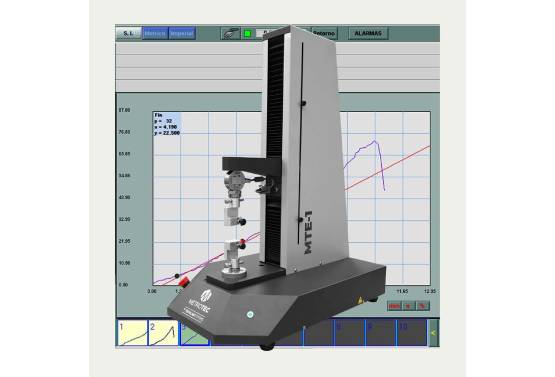

Electromechanical Material Testing Machine MTE-1 (1 kN)

Single-column electromechanical testing equipment designed to perform tensile, compression, bending, shearing, peeling and similar tests on very light materials up to 1 kN capacity.

Features

Maximum force capacity: 1KN
Single Column Electromechanical Drive
Available load cells not included in the standard supply: 1kN – 500N – 250N – 100N – 50N and 10N
Force resolution with 1kN Load Cell: 0.01 N
Force measurement accuracy: ≤ ± 0.5% (class 0.5)
Displacement resolution: 0.001 mm
Test speed accuracy ≤ ± 1%
Mobile crossbar travel: 500 mm
Separation between column and grip adapter: 150 mm
Range Standard test speeds: 0.5 – 1000 mm /min
Test speed accuracy: ≤ ± 1%
Maximum return speed: 1000 mm/min
Separation between fixings (adapters): 500 mm
RS-232 output interface with converter to USB

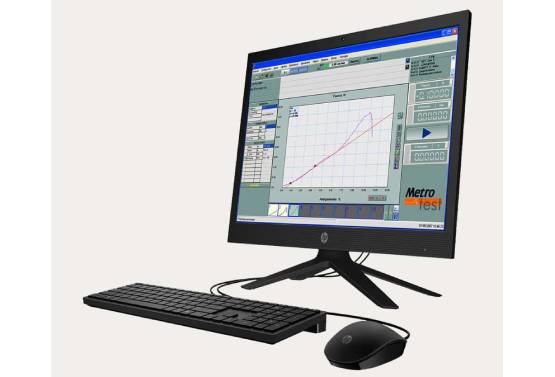

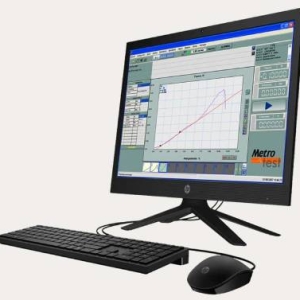

Testing software with basic statistics
Compatible with the T-LAB Laboratory Management System
CE marked

TECHNICAL SPECIFICATIONS

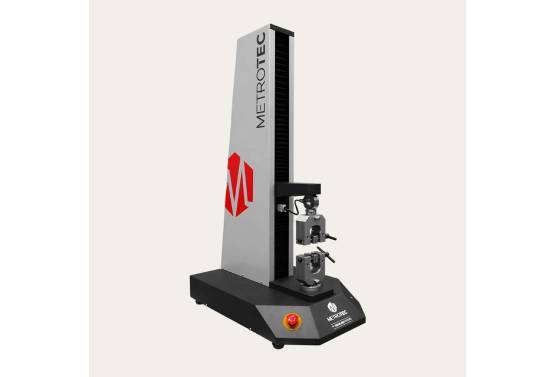

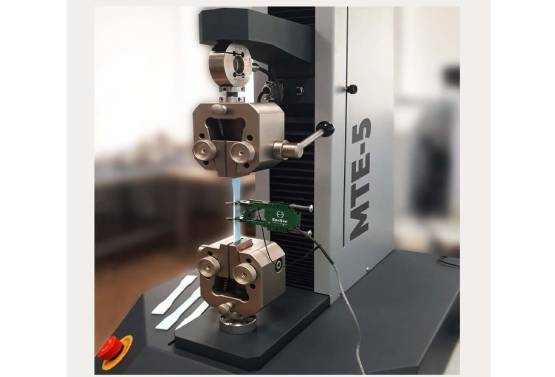

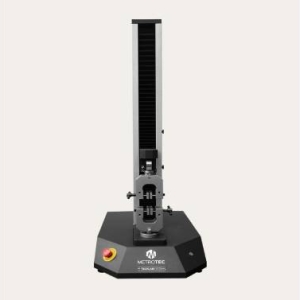

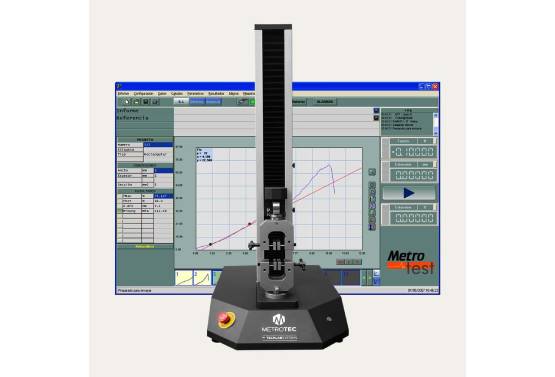

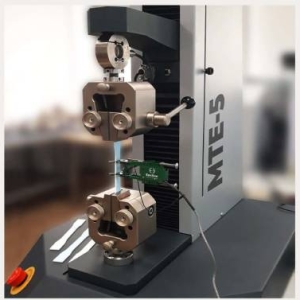

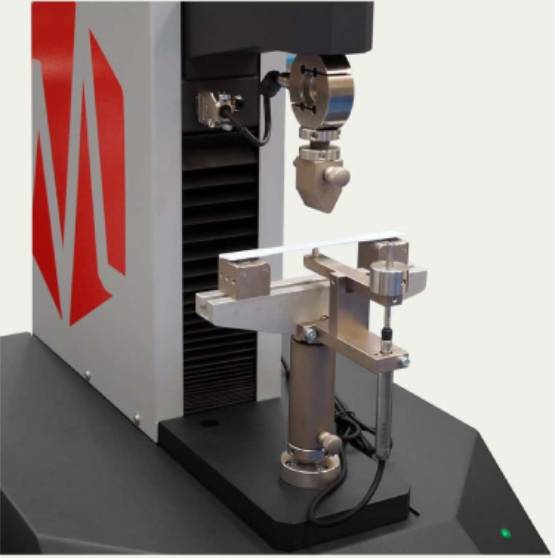

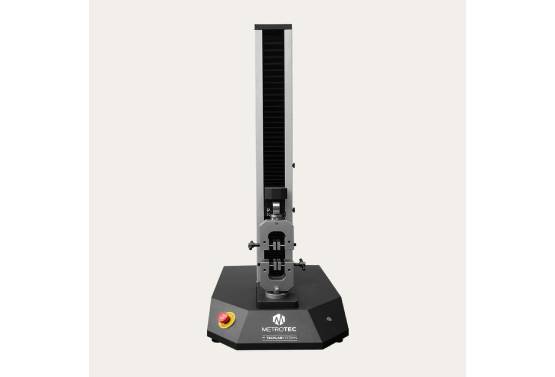

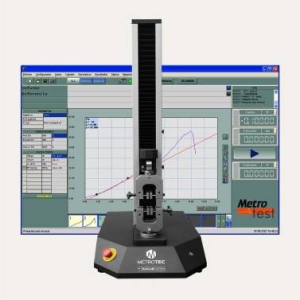

Electromechanical Material Testing Machine MTE-5 (5 kN)

Single-column electromechanical testing equipment designed to perform tensile, compression, bending, shearing, peeling and similar tests on light materials up to 5 kN capacity.

Features

Maximum force capacity: 5KN
Single Column Electromechanical Drive
Available load cells not included in the standard supply: 5kN –1kN – 500N – 250N – 100N – 50N y 10N
Resolution in force with Load Cell of 5kN: 0,05 N
Force measurement accuracy: ≤ ± 0.5% (class 0.5)
Displacement resolution: 0.001 mm
Test speed accuracy ≤ ± 1%
Mobile crossbar travel: 800 mm
Separation between column and grip adapter: 150 mm
Range Standard test speeds: 0.5 – 1000 mm /min
Test speed accuracy: ≤ ± 1%
Maximum return speed: 1000 mm/min
Separation between fixings (adapters): 800 mm
RS-232 output interface with converter to USB
Testing software with basic statistics
Compatible with the T-LAB Laboratory Management System
CE marked

TECHNICAL SPECIFICATIONS

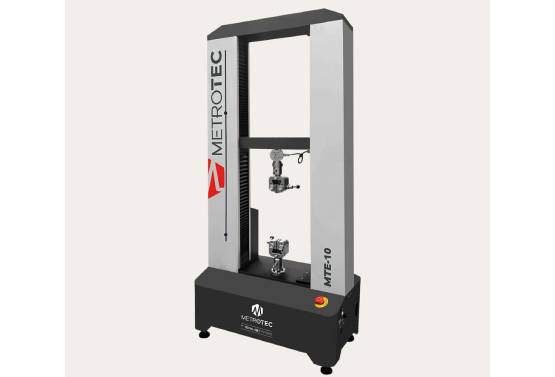

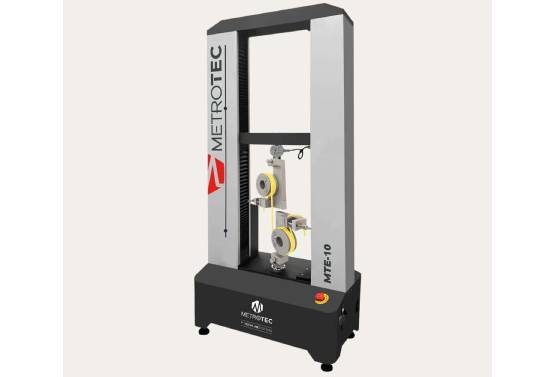

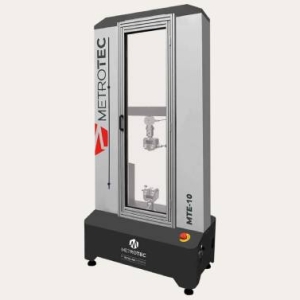

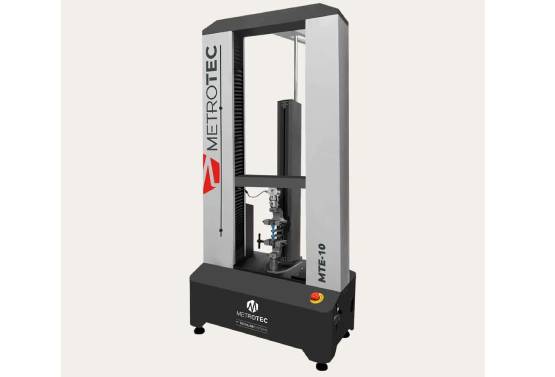

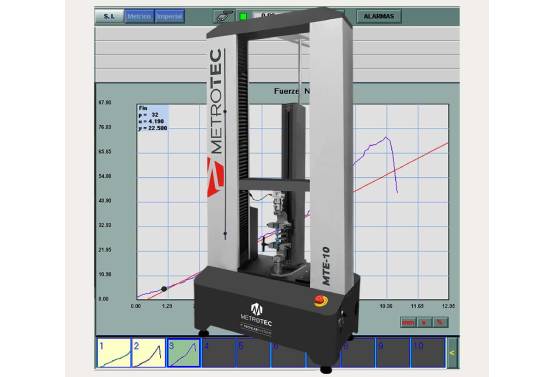

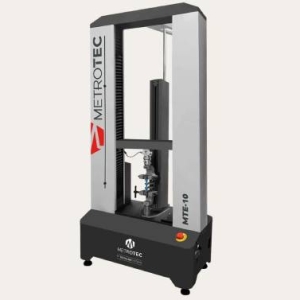

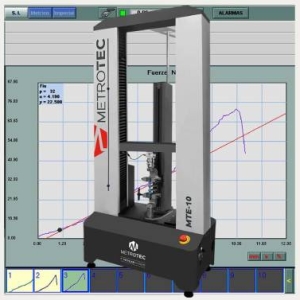

Electromechanical Material Testing Machine MTE-10 (10 KN)

Double column electromechanical testing equipment designed to perform tensile, compression, bending, shearing, peeling and similar tests on various materials up to 10 kN capacity.

Features

Maximum force capacity: 10 KN
Double column electromechanical drive
Available load cells not included in the standard supply: 10kN – 5kN – 1kN – 500N – 250N – 100N – 50N and 10N
Force resolution with 10kN Load Cell: 0.1 N
Force measurement accuracy: ≤ ± 0.5% (class 0.5)
Displacement resolution: 0.001 mm
Test speed accuracy ≤ ± 1%
Mobile crossbar travel: 1100 mm
Separation between columns: 430 mm
Range Standard test speeds: 0.05 – 1000 mm /min
Test speed accuracy: ≤ ± 1%
Maximum return speed: 1000 mm/min
Separation between fixings (adapters): 1100 mm
RS-232 output interface with converter to USB
Testing software with basic statistics
Compatible with the T-LAB Laboratory Management System
CE marked

TECHNICAL SPECIFICATIONS

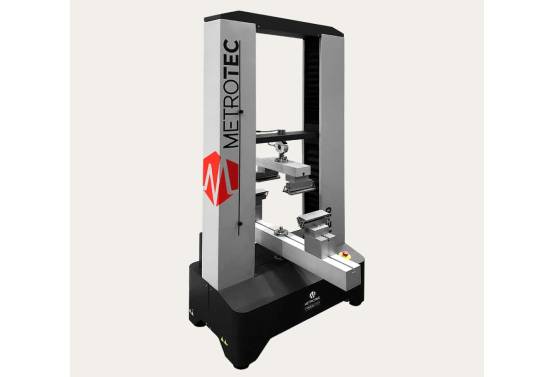

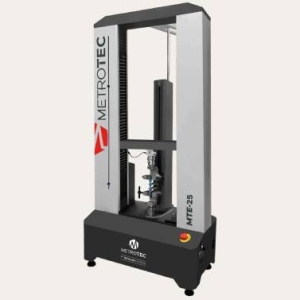

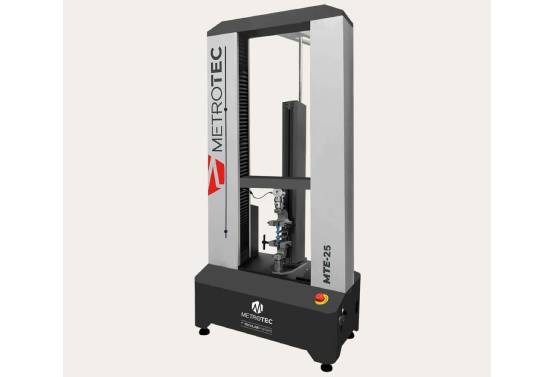

Electromechanical Material Testing Machine MTE-25 (25 kN)

Double column electromechanical testing equipment designed to perform tensile, compression, bending, shearing, peeling and similar tests on various materials up to 25 kN capacity.

Features

Maximum force capacity: 25 KN
Double column electromechanical drive
Available load cells not included in the standard supply: 25kN – 10kN – 5kN – 1kN – 500N – 250N – 100N – 50N and 10N
Resolution in force with 25kN Load Cell: 0.25 N
Force measurement accuracy: ≤ ± 0.5% (class 0.5)
Displacement resolution: 0.001 mm
Test speed accuracy ≤ ± 1%
Mobile crossbar travel: 1000 mm
Separation between columns: 430 mm
Range Standard test speeds: 0.05 – 500 mm /min
Test speed accuracy: ≤ ± 1%
Maximum return speed: 500 mm/min
Separation between fixings (adapters): 1000 mm
RS-232 output interface with converter to USB
Testing software with basic statistics
Compatible with the T-LAB Laboratory Management System
CE marked

TECHNICAL SPECIFICATIONS

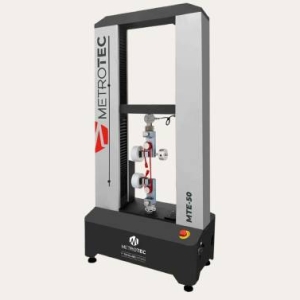

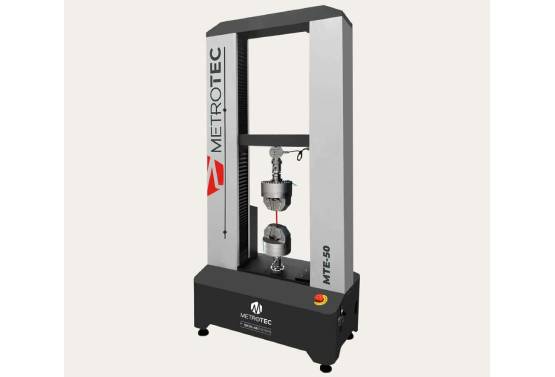

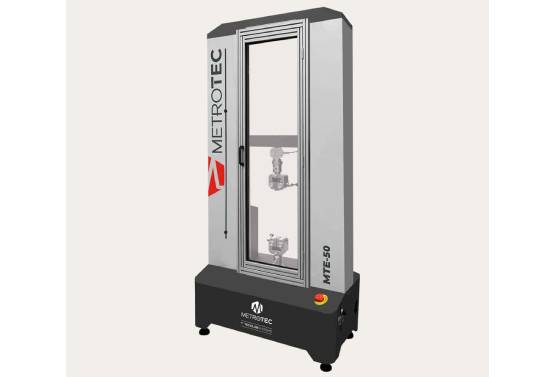

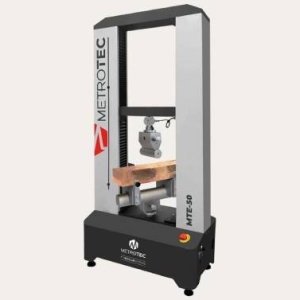

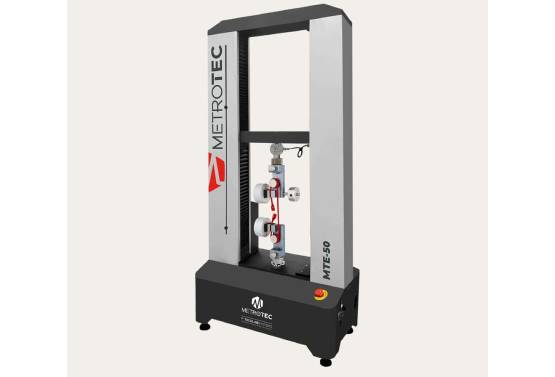

Electromechanical Material Testing Machine MTE-50 (50 kN)

Double column electromechanical testing equipment designed to perform tensile, compression, bending, shearing, peeling and similar tests on various materials up to 50 kN capacity.

Features

Maximum force capacity: 50KN
Double column electromechanical drive
Available load cells not included in the standard supply: 50kN – 25kN – 10kN – 5kN – 1kN – 500N – 250N – 100N – 50N and 10N
Resolution in force with 25kN Load Cell: 0.25 N
Force measurement accuracy: ≤ ± 0.5% (class 0.5)
Displacement resolution: 0.001 mm
Test speed accuracy ≤ ± 1%
Mobile crossbar travel: 1000 mm
Separation between columns: 430 mm
Range Standard test speeds: 0.05 – 500 mm /min
Test speed accuracy: ≤ ± 1%
Maximum return speed: 500 mm/min
Separation between fixings (adapters): 1000 mm
RS-232 output interface with converter to USB
Testing software with basic statistics
Compatible with the T-LAB Laboratory Management System
CE marked

TECHNICAL SPECIFICATIONS

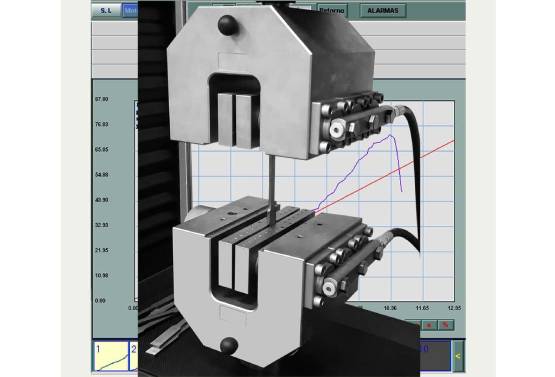

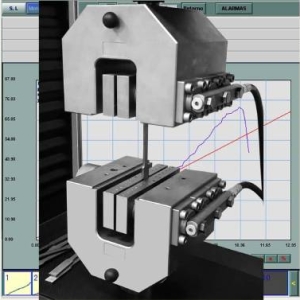

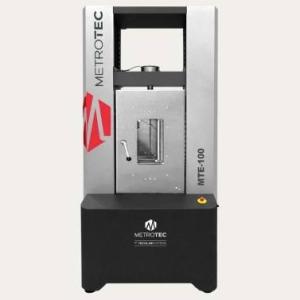

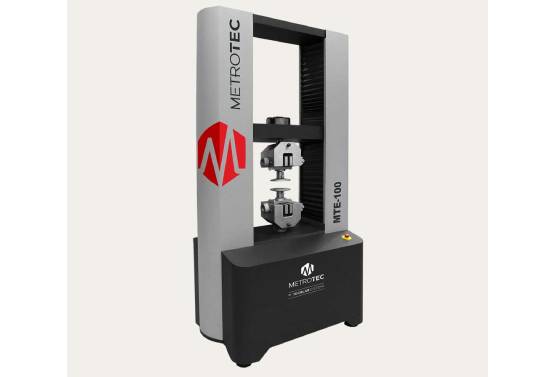

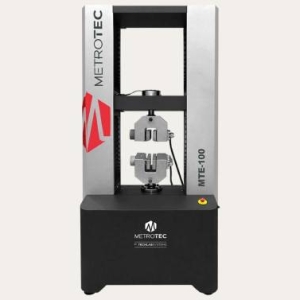

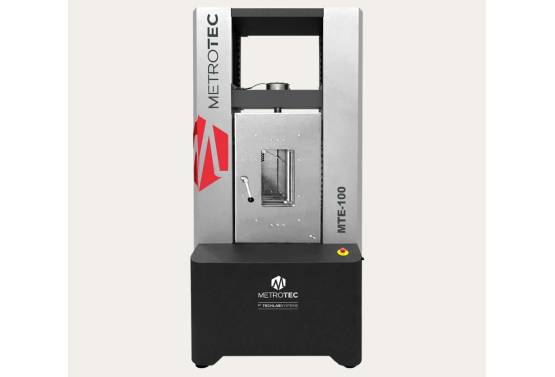

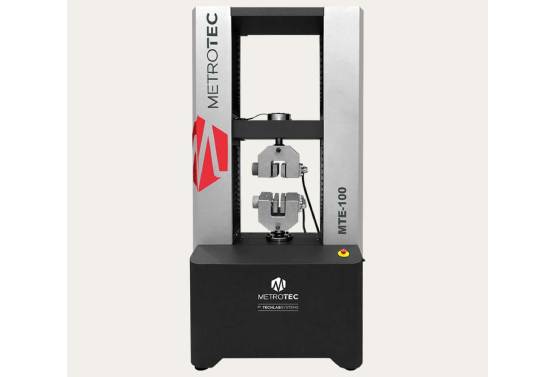

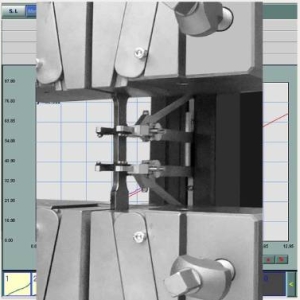

Electromechanical Material Testing Machine MTE-100 (100 kN)

Double column electromechanical testing equipment designed to perform tensile, compression, bending, shearing, peeling and similar tests on resistant materials up to 100 kN capacity.

Features

Maximum force capacity: 100 KN
Included in standard supply a 100 kN load cell
Double column electromechanical drive
Available load cells not included in the standard supply: 50kN – 25kN – 10kN and 5kN
Resolution in force with 100kN Load Cell: 1 N
Force measurement accuracy: ≤ ± 0.5% (class 0.5)
Displacement resolution: 0.001 mm
Test speed accuracy ≤ ± 1%
Mobile crossbar travel: 1100 mm
Separation between columns: 600 mm
Range Standard test speeds: 0.05 – 500 mm /min
Test speed accuracy: ≤ ± 1%
Maximum return speed: 500 mm/min
Separation between fixings (adapters):1100 mm
RS-232 output interface with converter to USB
Testing software with basic statistics
Compatible with the T-LAB Laboratory Management System
CE marked
